Gate Valves

Gate Valves made By Juyi are a Total solution to your industrial Gate Valve needs. Landee Gate Valves are available in various sizes, ranging from ½” – 80”. Landee Gate Valves are available manufact

Content

Gate Valves made By Juyi are a Total solution to your industrial Gate Valve needs. Juyi Gate Valves are available in various sizes, ranging from ½” – 80”. Juyi Gate Valves are available manufactured with various materials, such as: Carbon Steel, Stainless Steel, Cast Iron, Forged Steel and available in different types Gate Valves. If you Need special Gate Valve specifications, please contact us to inquire about your Gate Valve requirements.

Gate Valves Products List

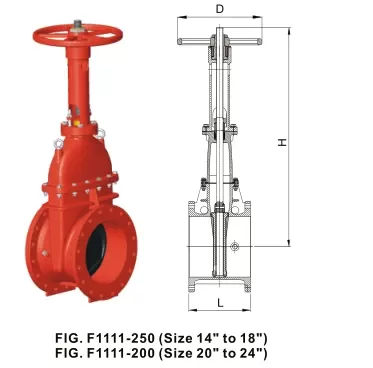

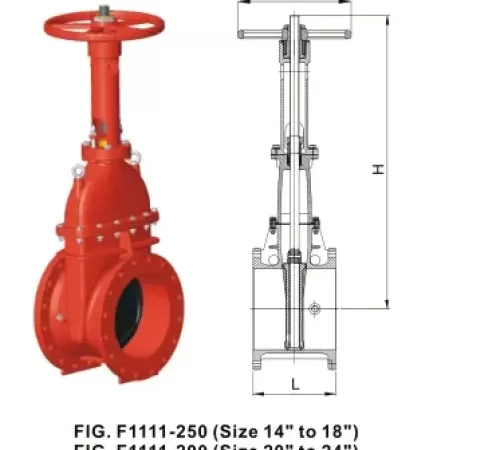

UL/FM Fire Protection Gate Valve, Resilient Wedge
	UL/FM Fire Protection Gate Valve Manufacturer: Fire Protection Gate Valves, Ductile Iron, 14 Inch, AWWA C515, OS&Y, Resilient Wedge, UL, FM Certificate.	1. Meet or exceed the requirements of AWWA C515 Standard 2. Full Waterway 3. Adjustable Packing 4. Rubber Fully Encapsulated Ductile Iron Wedge 5. Handwheel - open left or open right 6. Face to Face Dimension complies with ASME B16.10 and EN 558 series 3 7. Flange and Drilling complies with ASTM B16.1, Class 125 LB 8. UL/ULC 262 Listed, FM 1120, FM 1130 Approved and GOST Certified 9. ANSI/NSF 61 & 372 Certified 10. Rated Working Pressure: 300 psi for 2 - 12 Inch 250 psifor 14 - 18 Inch 200 psi for 20 - 24 Inch

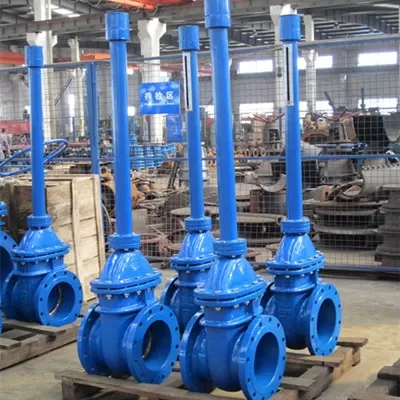

DIN3352 F4 Gate Valve, GGG50, 8IN, 120 LB, Blue Epoxy Powder, RF
	China Gate Valve Manufacturer Juyi Supplies DIN3352 F4 Gate Valve, Ductile Iron GGG50, 8 Inch, Class 120, Raised Face, Blue Epoxy Powder Coating.	Type: Gate Valve. Body Material: Ductile Iron GGG50. Extension Stem: SS420. Sealing: EPDM. Standard: DIN3352 F4. Size: 8 Inch. Pressure: 120. Coating: Blue Epoxy Powder. End: RF.

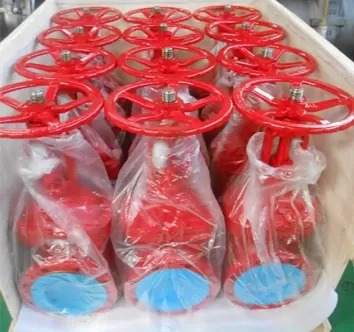

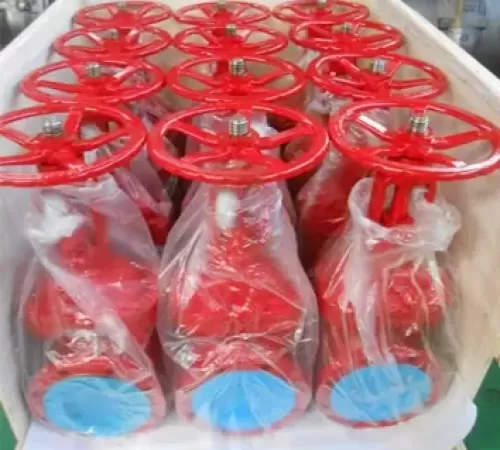

RAL 3020 Gate Valve, A216 WCB, 6 Inch, 150 LB, OS&Y, BB, RF
	China RAL 3020 Gate Valve Supplier Provides RAL 3020 Gate Valve, ASTM A216 WCB, 6 Inch, Class Rating 150 LB, OS&Y, Bolted Bonnet, RF Connection Ends.	Name: Gate Valve. Material: ASTM A216 WCB. Size: 6 Inch. Class Rating: 150#. Connection Ends: RF. Coating Color: RAL 3020.

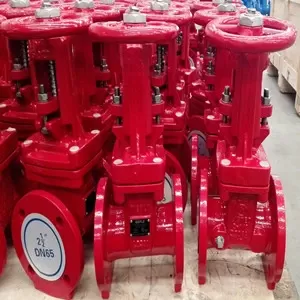

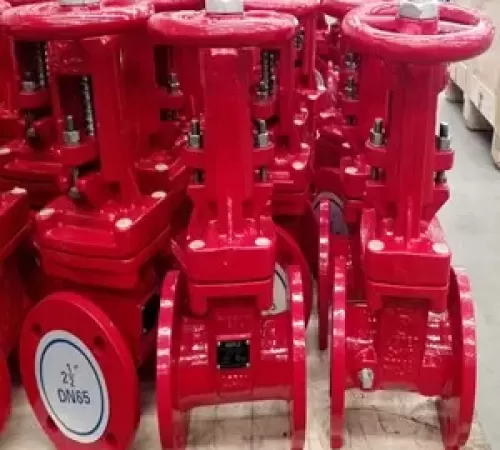

Ductile Iron Gate Valve, 2-1/2 Inch, 300PSI, AWWA C515
	China Ductile Iron Gate Valve Manufacturer Juyi offers Ductile Iron Gate Valve, 2-1/2 Inch, 300PSI, AWWA C515, Flanged Ends, FM / UL Approved.	Type: Gate Valve. Size: 2-1/2 Inch. Pressure: 300PSI. Ends: Flange. Standard: AWWA C515. Material: Ductile Iron. Certificate: FM / UL Approved.

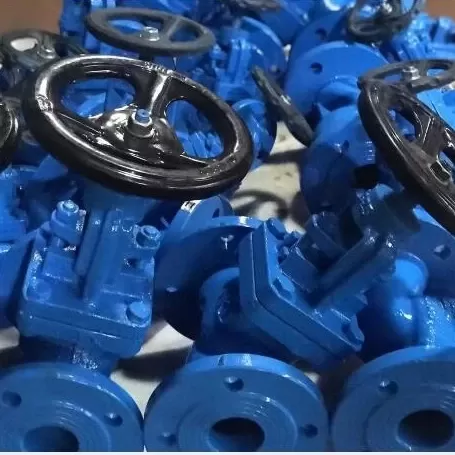

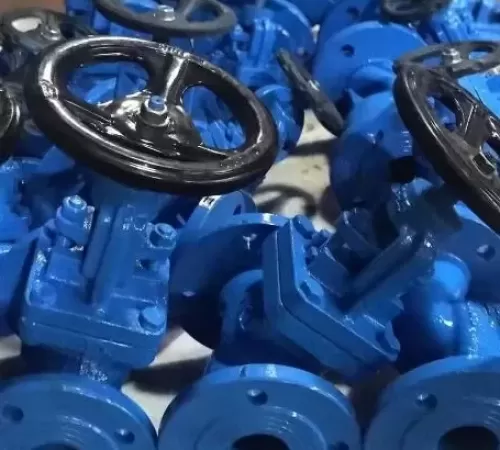

ASTM A536 / A126 Gr B Gate Valve, DN15-DN700, PN16
	We Provide ASTM A536 / A126 Gr B Gate Valves, Cast Iron ASTM A126 Gr B, Ductile Iron ASTM A536 Gate Valves, DN15-DN700, 1/2 - 28 Inch, PN16, 150 LB, MSS, BS, DIN.	Cast Iron ASTM A126 Gr. B / Ductile Iron ASTM A536 Body Materials, Gate Valve, Flexible Seat or Metal Seat, Face to Face Length standard could be MSS, BS AND DIN Standard, PN16, DN15-DN700 Product Item: Gate Valve Size: DN15-DN700, 1/2 - 28 Inch Pressure: PN16, Class 150 LB Material: Cast Iron ASTM A126 Gr. B, Ductile Iron ASTM A536 Face to Face: MSS, BS, DIN

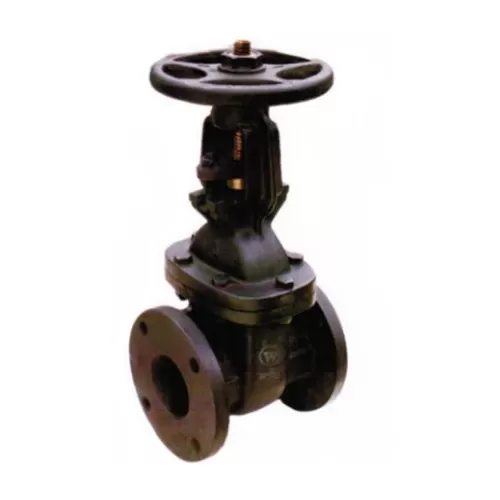

Cast Iron Rising Stem Gate Valve, ASTM A126B, 2-16 Inch
	Cast Iron Rising Stem Gate Valve Manufacturer: Cast Iron Gate Valves, Rising Stem, ASTM A126B, Solid Wedge, Flanged Ends, 2-16 Inch, 125S, 200WOG.	Cast Iron Rising Stem Gate Valve Solid Wedge Flanged Ends 1. Design Conforms to MSS SP-70 2. Flanges drilled to ANSI B16.1 (125lb, 150lb) 3. Face to face dimensions conform to ANSI B 16.10 (125lb, 150lb) 4. Working pressure: 125S, 200WOG 5. Suitable media: water, oil, gas 6. Body, bonnet, disc: ASTM A126B 7. Stem: brass ASTM B16, stainless steel 8. Trim: cast bronze ASTM B62, stainless steel 9. Size: from 2 Inch to 16 Inch, DN50-DN400 10. Pressure test: MSS SP-70 or API 598
