Safety Valves

Safety Relief Valves made By Juyi are the best solution to your industrial Safety Valve needs. Landee Safety Relief Valves are available in various sizes, ranging from 2” – 48”. Landee Pressure Safe

Content

Safety Relief Valves made By Juyi are the best solution to your industrial Safety Valve needs. Juyi Safety Relief Valves are available in various sizes, ranging from 2” – 48”. Juyi Pressure Safety Relief Valves are available manufactured with various materials, such as: Cast Iron, Cast Steel, Stainless Steel, and available in different types Safety Relief Valves. If you Need special Safety Valve specifications, please contact us to inquire about your Safety Valve requirements.

Safety Valves Products List

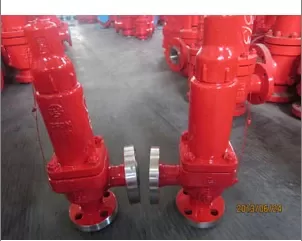

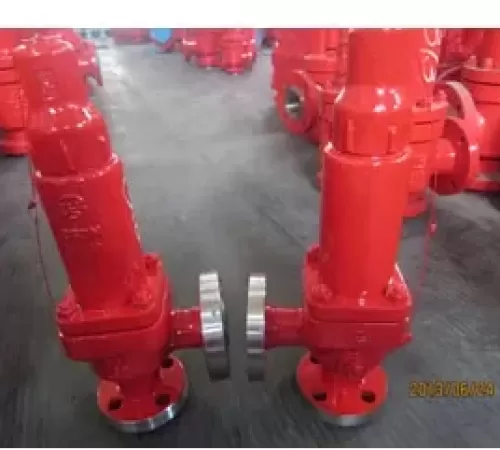

ASTM A216 WCB Angle Type Safety Valve, DN150 x DN200, 24 Bar
	We Provide ASTM A216 WCB Angle Type Safety Valves, ASTM A216 WCB Angle Safety Valves, Cast Steel ASTM A216 WCB, DN150 x DN200 mm, 24 Bar, JIS 10-30K.	Safety Valves cast steel ASTM A216 WCB Product Item: Angle-type Safety Valves Material: Cast Steel ASTM A216 WCB Size: DN150 x DN200mm Set pressure: 24 bar Flange drilling: Inlet JIS 30K Outlet JIS 10K

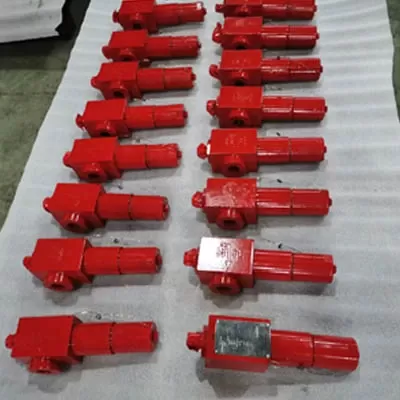

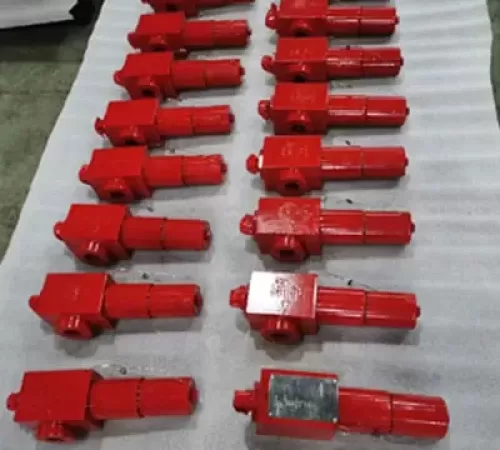

ASTM A216 WCB Screwed Safety Relief Valve, 150#, 15 Bar, NPT
	ASTM A216 WCB Screwed Safety Relief Valve Supplier: Cast Steel ASTM A216 WCB Pressure Relief Valve, 1/2 X 3/4 Inch, Class 150, 15 Bar, Screwed NPT Ends.	Name: Screwed Relief Safety Valve. BODY Material: Cast Steel, ASTM A216 WCB. Set Pressure: 15 Bar. Inlet Size: 1/2 Inch. Outlet Size: 3/4 Inch. Class Rating: 150 LB. Connection Ends: Screwed NPT.

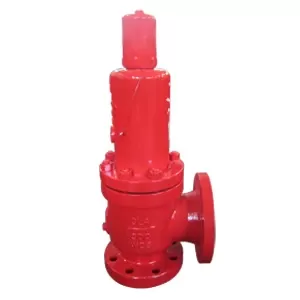

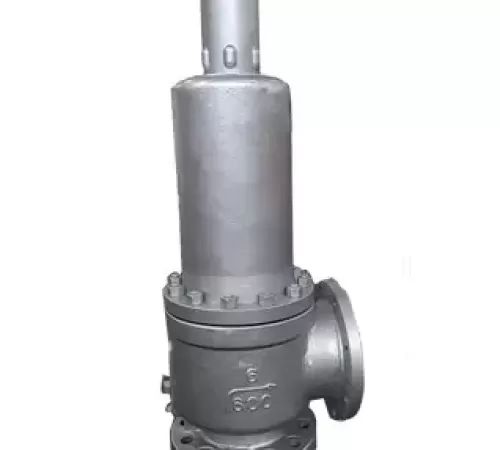

ASTM A216 WCB Safety Valve, Inlet 6 In 600 LB, Outlet 8 In 150 LB
	China RF Safety Valve Manufacturer Juyi Offers ASTM A216 WCB Safety Valve, 50CRVA Spring, Inlet 6 In ch 600 LB, Outlet 8 Inch 150 LB, Raised Face.	Body and Bonnet Material: ASTM A216 WCB. Spring material: 50CRVA. Setting Pressure: 38bar. Inlet size: 6 Inch-Class 600. Outlet size: 8 Inch-Class 150. End: RF. Medium: Gas.
A216 WCB Safety Valve, 4-6 Inch, 1.4Mpa, RF, 250℃ Max
	China A216 WCB Safety Valve Manufacturer Juyi offers ASTM A216 WCB Safety Valve, 4-6 Inch, 1.4 Mpa, 250℃ Max, RF Ends.	Type: Safety Valve. Body Material: ASTM A216 WCB. Tempture: 250℃ Max. Setting Pressure: 1.4Mpa. Size: 4-6 Inch. End: RF.
ASTM A216 WCB Stainless Steel Pressure Relief Valve
	Pressure relief valve manufacturer Juyi supplies ASTM A216 WCB stainless steel pressure relief valves with 3 inch 300# RF inlet,4 inch 150 LB RF outlet.	ASTM A216 WCB stainless steel pressure relief valves. Inlet: 3 inch, 300 LB, RF. Outlet: 4 inch, 150 LB, RF. Set Pressure:1.92 MPa. Back Pressure: 0.01 MPa. Body: ASTM A216 WCB. Seat & Disc: 316 stainless steel. Spring: Alloy St+Ni. Bellows: 316L. Temperature: 75℃. Fluid: Crude Oil.

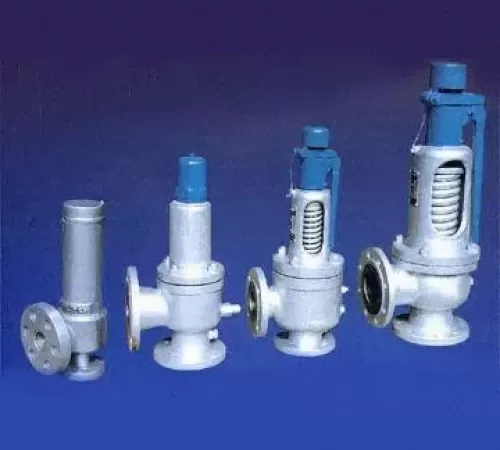

Flanged Safety Valves
	Flanged Safety Valve Manufacturer Juyi Supplies API, ANSI, BS, DIN, JIS Flanged Safety Valves, Flanged Pressure Relief Valves in carbon, alloy, stainless steel.	Pressure Relief Valves, Flanged Safety Valves Safety Valve Manufacturing standards: API, ANSI, BS, DIN, JIS Pressure Relief Valve Size range: from 3/8 inch to 16 inches (DN10mm - DN400mm) Connection: flanged Safety Valve Body materials: carbon steel, alloy steel, stainless steel
ASTM A-105 Pressure Relief Valve, 3/4 Inch Inlet, 1 Inch Outlet
	China A-105 Pressure Relief Valv Supplier Offers ASTM A-105 Pressure Relief Valve, 3/4 Inch Inlet, 1 Inch Outlet, Flange Class Rating 150, Raised Face.	Type: Pressure Relief Valve. Body Material: ASTM A-105. Seat & Disc: 316 S.S. Inlet Size: 3/4 Inch. Outlet Size: 1 Inch. Flange Rating: 150#. Orifice Designation: D. Type Facing: RF. Pressure Relief, Bonnet: Closed, Body Material: ASTM A-105, Size Inlet: 3/4 Inch, Size Outlet: 1", Flange Rating: 150#, Type Facing: RF, Orifice Designation : D. Trim Material: Seat & Disc: 316 S.S, Guide & Ring: 316 S.S, Spring: 316 S.S. Accessories: Cap or Lever: Cap, Gag : Yes. Basis of Selection: Code: API-RP-520, Other: Pressure Relief. Service Condition: Fluid: Diesel / Petrol, SP. GR. @ F.T.: 0.85, Viscosity @ F.T. CP: 6, Pressure: PSIG. Norm. Relieving: 58, 80, Temp.-°F Norm. Relieving: AMB, AMB, Constant Back Pressure PSIG: 20, Developed Back Pressure PSIG: -, Spring Set Prsessure PSIG, Overpressure - %: 10.

TAG：Safety Valves
