Ball Valves

ANSI Ball Valve：Class 150LB - 2500LB SIZE 1/2

DIN Ball Valve：DN50 - DN600, PN16 - PN160

JIS Ball Valve：DN50 - DN600 10K - 63K

BS Ball Valve：DN50 - DN350, PN16 - PN40

Ball Valve Materials：WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, A105, LF2, F11, F22, F5, F304, F316, F304L, F316L

Design & Manufacture Standards：API 6D,API600, ASME B16.34, JISB2071, JISB2073, JISB2083, BS 1873, BS1414

Face to Face Standards：ASME B16.10, DIN 3202, BS2080, API 6D, JISB2002

End Connection Standards：ASME B16.11, ASME B1.20.1, ASME B16.5, DIN2543-2550, JISB2212 - JISB2214

Ball Valve Test Standards：API 598, API 6D, JIS B2003, ISO 5208, BS 6755, DIN 3230, EN 12266

Juyi Ball Valves are a high performance solution to your industrial Ball Valve needs.Landee Ball Valves are available in sizes ranging from ¼” to 80” in materials such as Carbon Steel, Stainless Steel

Content

Juyi Ball Valves are a high performance solution to your industrial Ball Valve needs. Juyi Ball Valves are available in sizes ranging from ¼” to 80” in materials such as Carbon Steel, Stainless Steel, Brass, Forged Steel, Cast Steel and Cast Iron. Juyi Ball Valves are also available in 2 Way or 3 Way configurations and are available in L Port and T Port flow patterns. Available end connections of the ball valve include Threaded, Socket Weld, Butt Weld and Flanged. Your Special Ball Valve and other Industrial Valves requirements are also available to inquire.

Ball Valves Products List

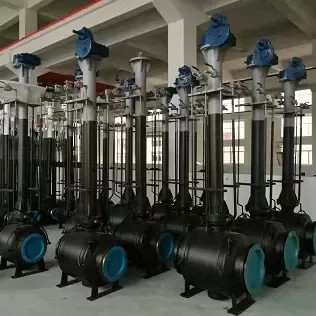

3PC Fully Welded Ball Valve, 10 Inch, 600 LB, API 6D
	3PC Full Welded Ball Valve Manufacturer: 3 Piece Fully Welded Ball Valves, ASTM A105, 10 Inch, DN250, 600 LB, PN100, API 6D, ASME B16.5, RF, DBB, LBV.	Full Welded BALL VALVE, SIZE 10 Inch, 600 LB, R.F, 3PCS, FULLY WELDED, SIDE En, ANTI STATIC DEV, DBB, LBV, API 6D, ASME B16.5 API 598 Name: Full Welded Ball Valve Size: 10 Inch, DN250 Class Rating: Class 600 LB, PN100 Material: ASTM A105 Body, PTFE, ASTM A105+ENP Standard: API 6D, ASME B16.5 Long Stem: Valve Center to Top l Meter Ends: R.F Flanged Ends Test: API 598 Brand: Juyi

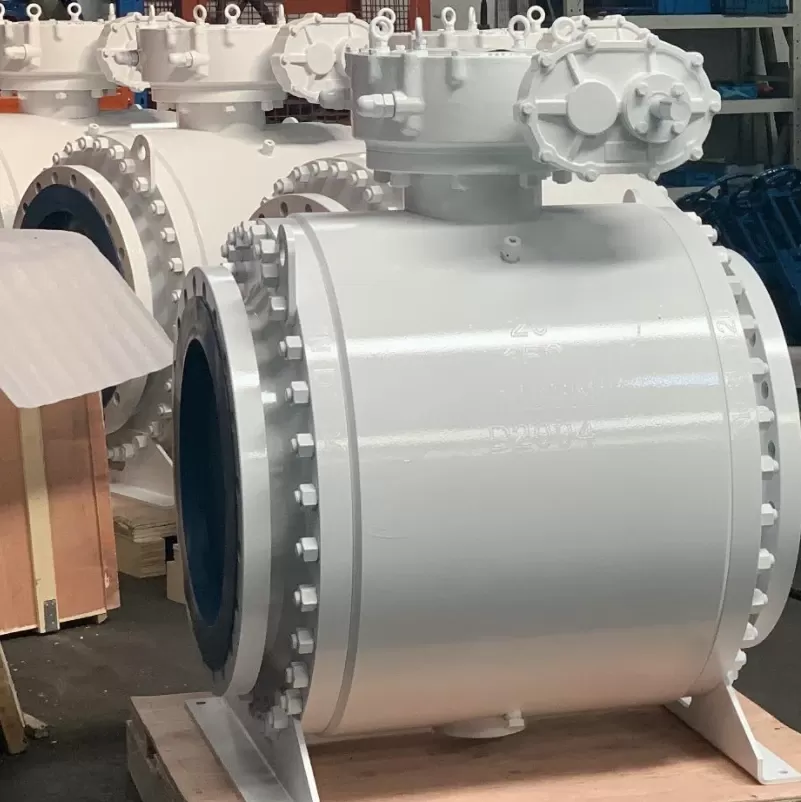

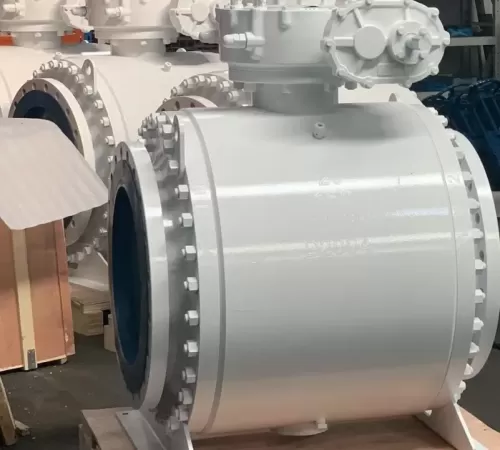

Trunnion Mounted Ball Valve, ASTM A105N, 20 Inch, 150 LB
	This valve features a trunnion-mounted, full port ball with tungsten carbide coated metal seats, flexible graphite seal gasket, and Inconel X750 spring. It is gear operated and has ASTM A193 Grade B7M bolts with ASTM A194 Grade 2HM nuts. The valve body is made of ASTM A105N and the ball is 316SS. It has ends per ASME B16.5 and ASME B16.10 long, and is designed to API 6D/ISO 14313 standards. Additionally, it has been fire tested to API-607 and is NACE MR0175 compliant.	VALVE, BALL: 20", 150 LB, RF, SPLIT BODY, TRUNNION MOUNTED, FULL PORT, GEAR OPERATED, ENDS PER ASME B16.5, ASME B16.10 LONG, NACE MR0175, API 6D/ISO 14313 DESIGN, FIRE TESTED TO API-607, BODY: ASTM A105N, BALL: 316SS, STEM: ASTM A479 GRADE XM-19, TUNGSTEN CARBIDE COATED METAL SEATS, FLEXIBLE GRAPHITE SEAL GASKET, INCONEL X750 SPRING, MANUFACTURERS STANDARD VENT/DRAIN, ASTM A193 GRADE B7M BOLTS WITH ASTM A194 GRADE 2HM NUTS Product Item: Trunnion Mounted Ball Valve Size: 20 Inch Pressure: Class 150 LB Design: API 6D, ISO 14313 Material: ASTM A105N Ball: SS 316 Stem: ASTM A479 Grade XM-19

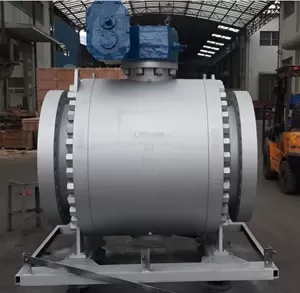

API 6D Forged Steel A105 Ball Valve, 600LB, RF, 30 Inch
	LD 14 BV 16 China Forged Steel Ball Valve manufacturer Juyi provides API 6D Trunnion Mounted Ball Valves, A105 Body, A105+ENP Ball, Nylon Seat, 600LB, RF, 30 Inch.	Keywords: Forged Steel A105 Ball Valve, 600# RF 30" API 6D Standard. Type: Ball Valve, Full bore, Trunnion Mounted Ball. Connection Ends: Flanged Ends. Class: 600#. Size: 30". Material: Body: Forged Steel A105, Ball: A105+ENP, Seat: Nylon. Operator: Gear Operated. Standard: API 6D. Brand: Juyi.

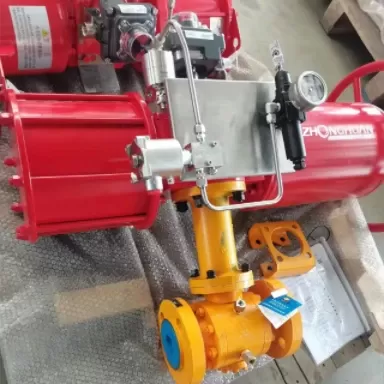

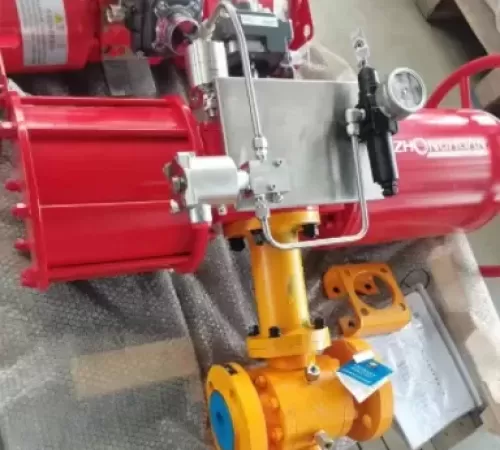

Pneumatic Actuator On/Off Ball Valve, WCB, 12 Inch, 300 LB
	Discover our high-quality ON/OFF ball valve equipped with an efficient actuator, solenoid valve, and regulator for seamless control and durability. ON/OFF BALL VALVE WITH ACTUATOR, SOLENOID VALVE & REGULATOR PNEUMATIC ACTUATOR ON/OFF BALL VALVE (EEXD CABLE GLAND, SHROUD, AND HANGER TAG PLATE) FULL BORE, METAL SEAT ACC. TO ASME B16.10, SIZE & END CONNECTION: 12 IN CLASS 300 RF ASME B16.5, BODY MATERIAL: ASTM A216GR WCB, BALL: 316SS, COATING & STEM: HARD CHROME & XM-19, H BACK SEALS: GRAPHITE SPRING: INCOLOY 825, SEAT: 316SS & COATING: COBALT-BASED HARD FACING, BODY GASKET: PTFE, PACING: PTFE V-RING, THRUST BEARING: FILLED PTFE, ACTUATOR: PNEUMATIC, SINGLE-ACTING CYLINDER, SPRING-RETURN, PROTECTION CLASS IP66, FUNCTION: SPRING-TO-CLOSE MATERIAL OF SEALS AND BEARING	Product Item: Pneumatic On/Off Ball Valve with Actuator, Solenoid Valve & Regulator Material: ASTM A216 GR WCB Ball: SS 316 Coating & Stem: Hard Chrome & XM-19 H Back Seals: Graphite Sring: Incoloy 825 Seat: SS 316 Size: 12 Inch, DN300 Pressure: Class 300 LB, PN50 Standard: ASME B16.5 End Connection: RF Seat: Metal Coating: Copneumatic, Single-acting Cylinder, Spring-return, Protection Class IP66 Function: Spring-to-close Material of Seals and Bearing Balt-based hard facing Body Gasket: PTFE Pacing: PTFE V-ring Thrust Bearing: Filled PTFE Actuator: Pneumatic

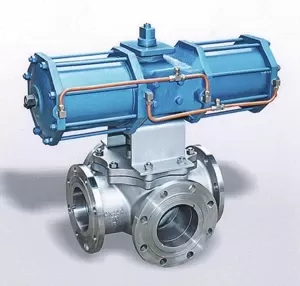

Four-Way Ball Valve, Flanged Ends, 150#, 6 Inch, PTFE
	LD 13 BV 08 China Ball Valve manufacturer Juyi supplies Four-Way Ball Valve, body made of ASTM A216 WCB, with 150# RF class, 6 Inch size, Pneumatic Actuator.	6 Inch, 150# RF, Four-Way Ball Valve, Flanged Ends. Size: 6 Inch. Class: 150# RF. Body: ASTM A216 WCB. Trim & Ball: ASTM A351 CF8. Seal: PTFE. Actuator: Pneumatic Actuator.

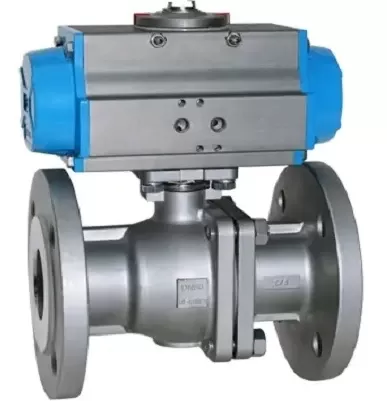

Air Operated SS 304 Two Piece Ball Valve, 100 NB, 4-1/2 Inch
	We Provide Air Operated SS 304 Ball Valves, Air Operated Stainless Steel 304 Two Piece Ball Valves, 100 NB, 4-1/2 Inch, and Flange Ends.	Air Operated SS 304 two-piece ball valve of size 100 NB, investment casting with double acting pneumatic actuator flange end with SS 304 L Matching flange and nuts & bolts Product Item: Two-Piece Ball Valve Material: SS 304 Size: 100 NB, 4-1/2 Inch End Connection: Flange End

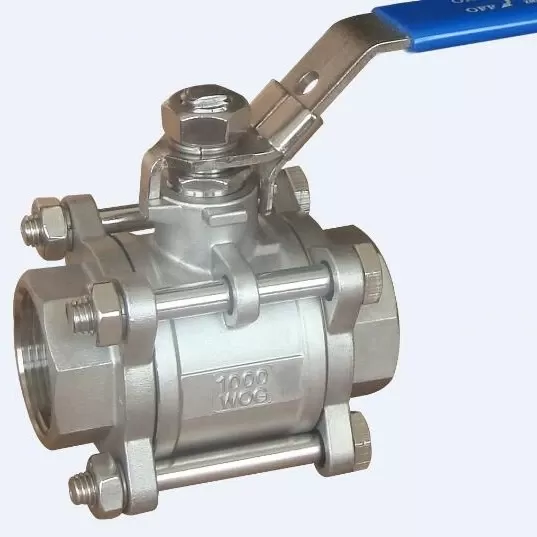

3PC Ball Valve, 3 Inch, 1000 WOG, A351 CF8M, NPTF
	We Provide 3PC Ball Valves, Stainless Steel ASTM A351 CF8M Ball Valves, 3-Piece Body, Full Port, 3 Inch, DN80, 1000 WOG, NPTF Ends, PTFE Seats, Lever Operating.	Stainless Steel Ball valve, 3-Piece Body, full port 3" 1000 WOG Rating, Connection: NPTF ends, ASTM A351 CF8M Body and Trim, PTFE Seats, Lever Operated Product Item: Ball valve Size: 3 Inch, DN80 Pressure: 1000 WOG Material: ASTM A351 CF8M Stainless Steel Body Type: 3-Piece End: NPTF ends Feature: Full port Operating: Lever

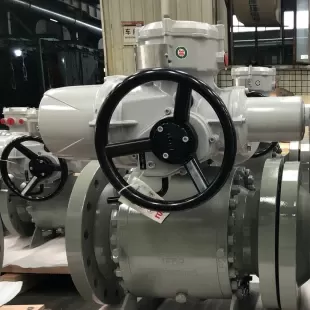

Electrical Actuator Ball Valve, 12 Inch, 300 LB, API 6D
	Electrical Actuator Ball Valve Supplier: ROTORK BRAND Electrical Actuator Trunnion Mounted Ball Valves, ASTM A105N, 12 Inch, 300 LB, API 6D, RF Ends.	ROTORK BRAND ELECTRICAL ACTUATOR API 6D trunnion mounted ball valves, Body: ASTM A105N, Ball and Stem: SS316, Seat: RPTFE, Flanged Ends, RF, 300# 12" Model: 12" Type: Ball Valve, Trunnion Mounted Body Material: ASTM A105N Ball Materials: Stainless Steel SS 316 Stem Materials: Stainless Steel SS 316 Seat Materials: RPTFE Standard: API 6D Ends: Flanged Ends ANSI B16.5 Class Rating: 300# Size: 12 Inch Operator: Gear Operator + ROTORK Electrical Actuator
